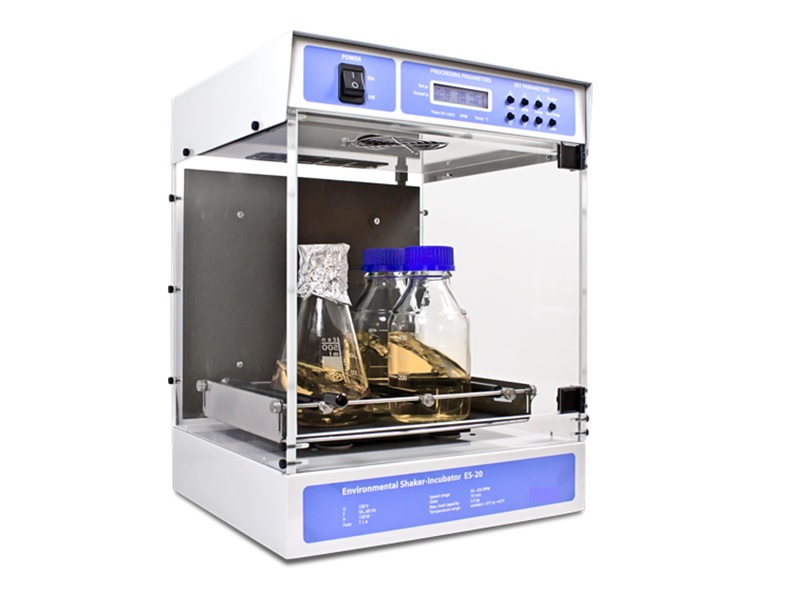

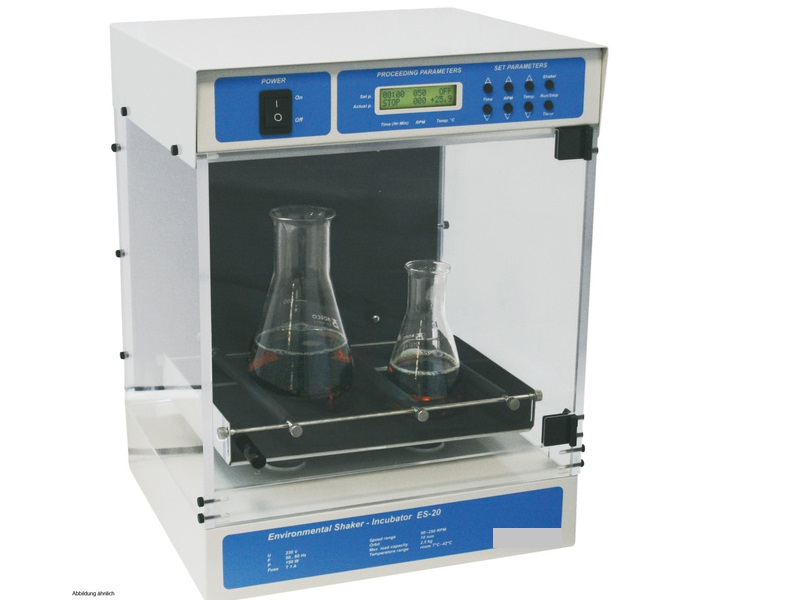

The Grant bio ES20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.
Features
► Digital control of time, temperature and shaking speed for accuracy and repeatability
► Variable speed: 50 to 250 rpm
► Temperature setting range: 25 to 42°C
► Load up to 2.5 kg
► Interchangeable platforms for shaking/incubating different vessels
► Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
► Equipped with direct drive shaking system for reliable, long-term operation
► Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
► Option of four easily interchangeable platforms for a wide range of different
► Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
► Designed for easy assembly/ disassembly - easy to move from one location to another
Applications
The ES-20 is a versatile shaker-incubator ideal for growing cell cultures in flasks and other vessels and for other general sample preparation applications.
| |
ES-60 |
ES-80 |
| Speed range rpm |
50 to 250 |
50 to 250 |
| Stability +/- °C |
0.5 |
0.5 |
| Orbit mm |
10 |
20 |
| Temperature setting range °C |
+25 to 42 |
+25 to 80 |
| Temperature control range °C |
+5 above ambient to 42 |
+5 above ambient to 80 |
| Timer |
1 min to 96 hours |
1 min to 96 hours |
| Continuous operation |
30 days (720 hours) |
30 days (720 hours) |
| Load capacity kg |
2.5 |
8 |
| Display |
2 line 16 character LCD |
2 line 16 character LCD |
| Internal working dimensions (with installed platform) (d x w x h) mm |
260 x 300 x 250 |
450 x 390 x 300 |
| Weight kg |
13.2 |
41.1 |
